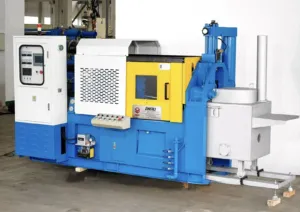

The ZL-90 Hot Chamber Die Casting Machine is a heavy-duty, fully automated die casting solution engineered for high-volume production of zinc and lead alloy components. Designed to deliver exceptional casting consistency, fast cycle times, and reliable long-term operation, this machine is widely utilized in hardware manufacturing, automotive component production, electrical accessories, sanitary fittings, decorative products, and industrial casting applications.
Featuring a 900 kN locking force, intelligent PLC-based control system, multi-stage injection control, and advanced hydraulic technology, the ZL-90 combines production efficiency with precision molding performance. Its robust double-toggle clamping structure, automatic lubrication system, and intelligent mold adjustment technology ensure stable operation even under demanding manufacturing conditions.
The machine is suitable for manufacturers seeking reliable, high-output die casting equipment capable of producing complex zinc and lead alloy components with excellent dimensional accuracy and surface quality.
The ZL-90 is specifically developed for hot chamber die casting applications where production speed, repeatability, and process control are essential.
Common applications include:
Its advanced hydraulic and injection systems provide consistent metal flow and improved casting quality throughout production cycles.

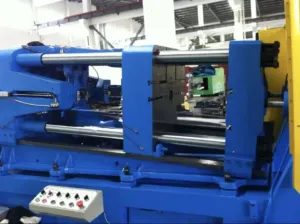

The ZL-90 utilizes a robust double-toggle locking structure manufactured from high-strength spheroidal graphite iron castings.
Benefits include:
The system delivers a locking force of 900 kN (90 Tons), making it suitable for a broad range of zinc and lead casting applications.
The injection system incorporates:
Advantages include:
This level of control allows operators to optimize performance for different mold designs and alloy compositions.

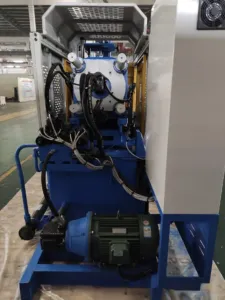

The machine utilizes a high and low-pressure dual-pump hydraulic design.
Key advantages:
This energy-efficient system contributes to improved productivity while maintaining stable operating performance.
The planetary gear mold adjustment mechanism is powered by a dedicated hydraulic motor.
Features include:
The system reduces downtime between production runs and improves overall workflow efficiency.
The hydraulic system incorporates double proportional control technology for accurate adjustment of:
This allows operators to fine-tune machine performance for optimal casting quality.

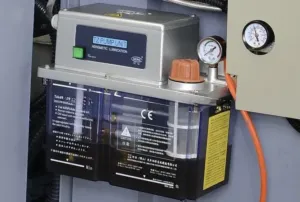

The integrated lubrication system automatically supplies lubrication based on machine operating cycles.
Benefits include:
This feature minimizes operator intervention while protecting critical moving components.
The hydraulic ejector unit offers:
This contributes to consistent production quality and reduced mold wear.
The ZL-90 is equipped with an intelligent computer-controlled operating system designed for efficient production management.
The large-screen LCD display supports both Chinese and English language interfaces.
The control system can store up to:
Stored parameters include:
This significantly reduces setup time when switching between production jobs.
An integrated electronic ruler positioning system provides:
0.1 mm
Benefits include:
The ZL-90 incorporates globally recognized industrial components.
These premium components help ensure long-term reliability and stable production performance.
| Specification | ZL-90 |
|---|---|
| Machine Type | Hot Chamber Die Casting Machine |
| Model | ZL-90 |
| Locking Force | 900 kN |
| Die Opening Stroke | 268 mm |
| Ejector Force | 60 kN |
| Maximum Ejector Stroke | 65 mm |
| Die Height Range | 140–350 mm |
| Tie Bar Diameter | 60 mm |
| Space Between Tie Bars | 360 × 360 mm |
| Injection Position | 0 / -50 mm |
| Plunger Stroke | 130 mm |
| Traverse Stroke | 210 mm |
| Maximum Injection Force | 65 kN |
| Hydraulic Pressure | 13 MPa |
| Motor Power | 11 kW |
| Oil Tank Capacity | 220 L |
| Accumulator Capacity | 20 L |
| Machine Weight | 4200 kg |
| Machine Dimensions | 4050 × 1550 × 1920 mm |
| Specification | Value |
|---|---|
| Maximum Shot Weight | 1.2 – 1.4 kg |
| Crucible Capacity (Zinc) | 400 kg |
| Diesel Furnace Consumption | 4.8 kg/h |
| Electric Furnace Consumption | 30 kW |
Included with the machine:
The ZL-90 is suitable for producing:
The ZL-90 combines intelligent automation, advanced hydraulic technology, and premium international components to deliver exceptional die casting performance.
Its high-strength clamping system, precise injection control, and automated production capabilities help manufacturers achieve higher output, better casting quality, and reduced operating costs.
Whether producing zinc alloy hardware, electrical components, automotive parts, or industrial products, the ZL-90 offers the reliability, precision, and efficiency required for modern die casting operations.
To support successful machine deployment, professional after-sales services include:
A qualified engineer can be dispatched to the customer’s facility upon machine delivery.
The ZL-90 includes:
Warranty coverage applies under normal operating conditions and proper maintenance procedures.
Contact our technical sales specialists today to discuss alloy requirements, production targets, furnace configurations, automation options, or to request a customized quotation tailored to your manufacturing operation.
