CNC Hydraulic Press Brake | CNC Electro-Hydraulic Servo Press Brake – 10.5 FT Sheet Metal Bending Machine

CNC Electro-Hydraulic Servo Hydraulic Press Brake for Precision Sheet Metal Fabrication

Advanced Bending Accuracy. Intelligent CNC Control. Industrial-Grade Performance.

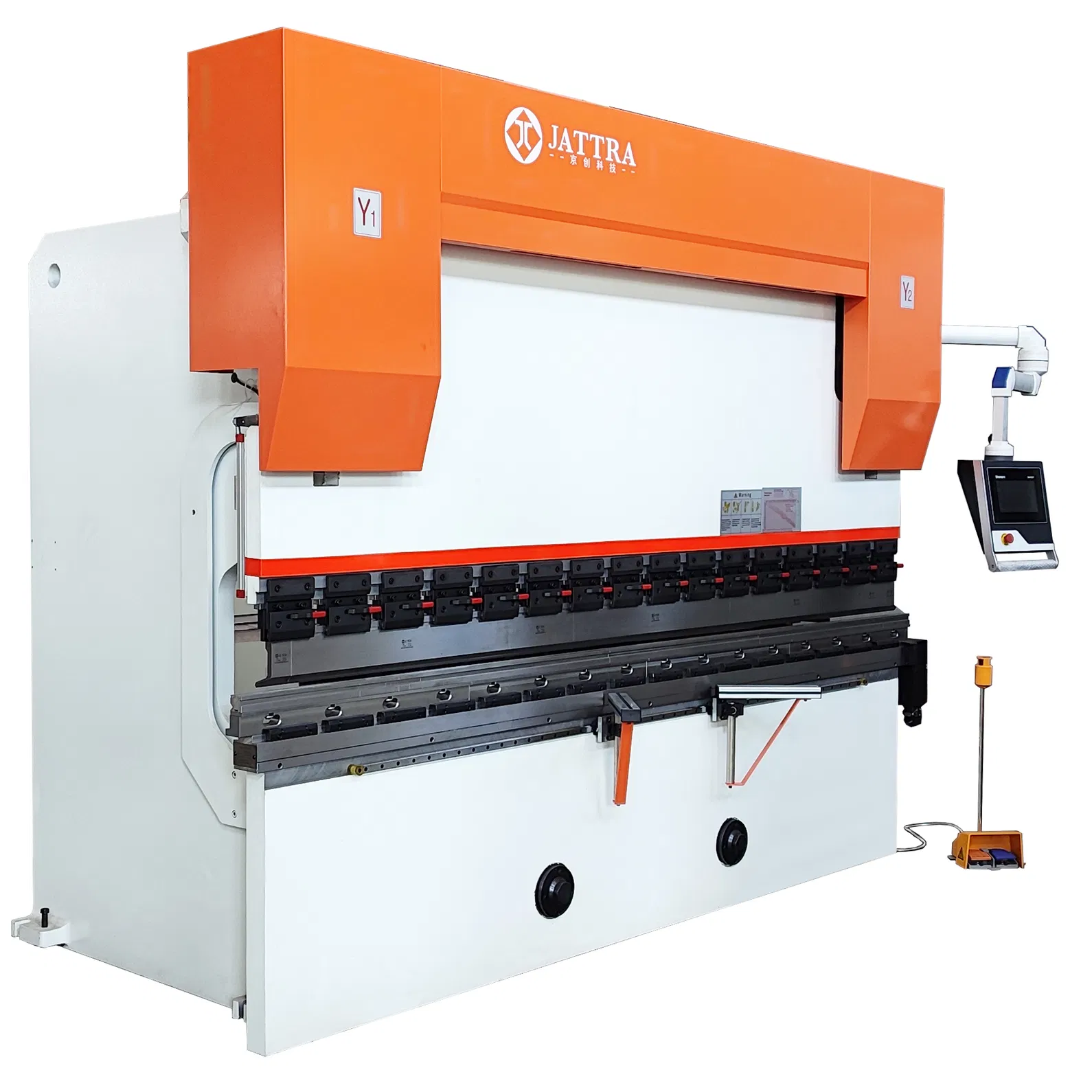

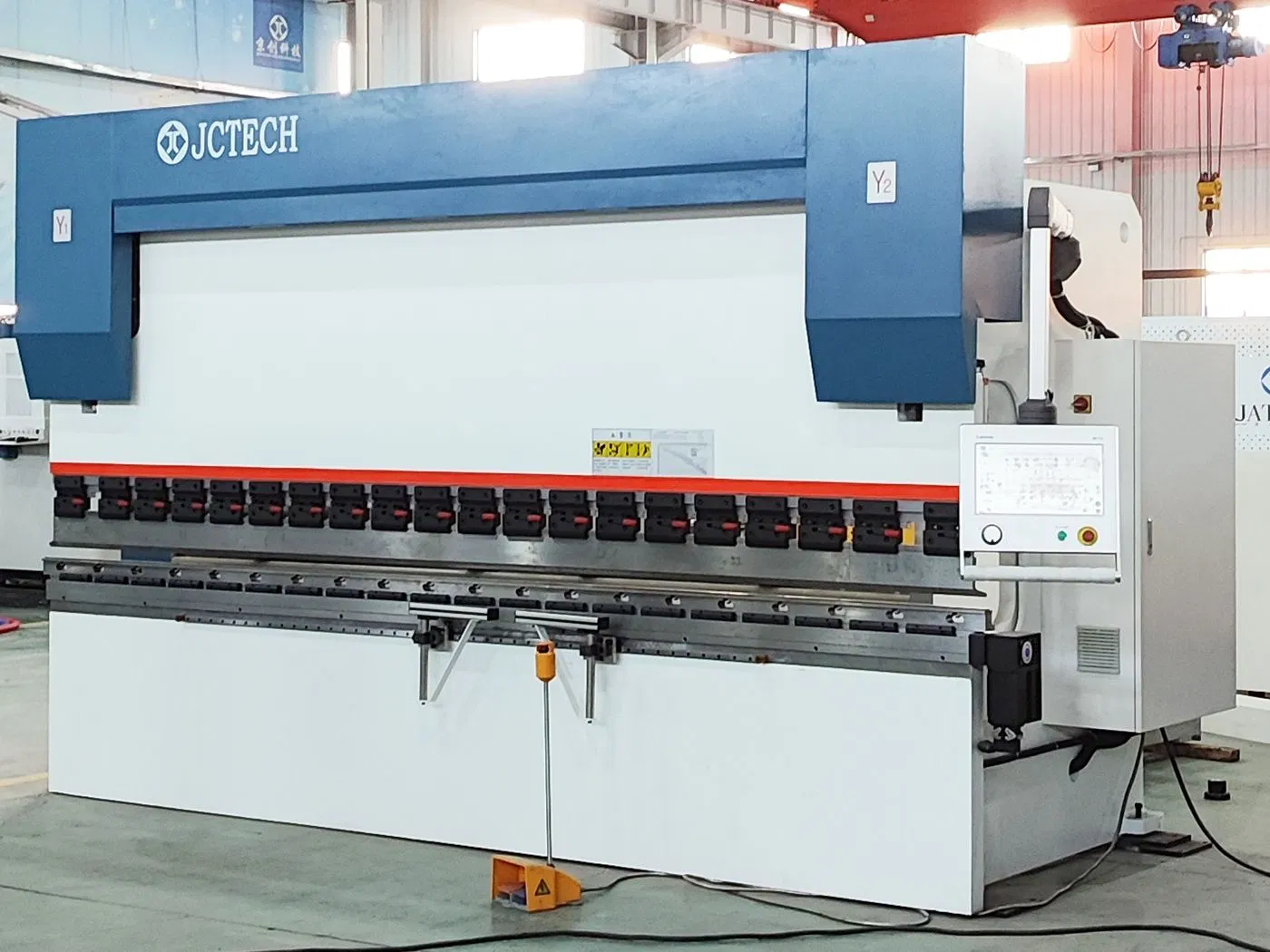

The JATTRA CNC Electro-Hydraulic Servo Press Brake is a high-precision sheet metal bending solution engineered for fabrication workshops, metal processing facilities, industrial manufacturers, and heavy-duty production environments. Combining advanced electro-hydraulic synchronization technology with the renowned Delem DA-53T CNC Control System, this machine delivers exceptional bending accuracy, repeatability, and production efficiency across a wide range of sheet metal applications.

Designed to process materials such as carbon steel, stainless steel, aluminum, copper, and alloy metals, the machine supports multiple working widths and tonnage configurations ranging from 40 tons to 320 tons, with custom solutions available up to 12 meters in length.

Featuring a servo-driven hydraulic system, crowning compensation technology, multi-axis CNC control, and precision rear gauge positioning, this press brake is built to meet the demands of modern fabrication operations requiring consistent, high-quality bending results.

---

Designed for Professional Metal Fabrication

Precision bending is critical in industries where dimensional accuracy and production consistency directly impact product quality.

The JATTRA CNC Press Brake is widely used in:

• Sheet metal fabrication
• Industrial manufacturing
• Electrical enclosure production
• HVAC fabrication
• Automotive component manufacturing
• Agricultural equipment production
• Architectural metalwork
• Stainless steel fabrication
• Structural steel processing
• Aerospace component manufacturing

Its flexible configuration options allow manufacturers to select the ideal machine size and tonnage for their specific production requirements.

---

Key Features & Benefits

Electro-Hydraulic Servo Synchronization System

The machine utilizes advanced electro-hydraulic synchronization technology to precisely control ram movement and bending operations.

Benefits include:

• Superior bending consistency
• Improved repeatability
• Reduced material waste
• Enhanced production accuracy
• Smooth machine operation

This system ensures equal pressure distribution throughout the bending cycle, producing highly accurate bend angles across the entire workpiece.

---

Delem DA-53T CNC Control System

At the heart of the machine is the industry-recognized Netherlands Delem DA-53T CNC Controller.

Key advantages include:

• Multi-step programming capability
• User-friendly touchscreen operation
• Automatic bend sequence calculations
• Real-time production adjustments
• Increased operator efficiency

The system simplifies complex bending operations while improving overall productivity.

---

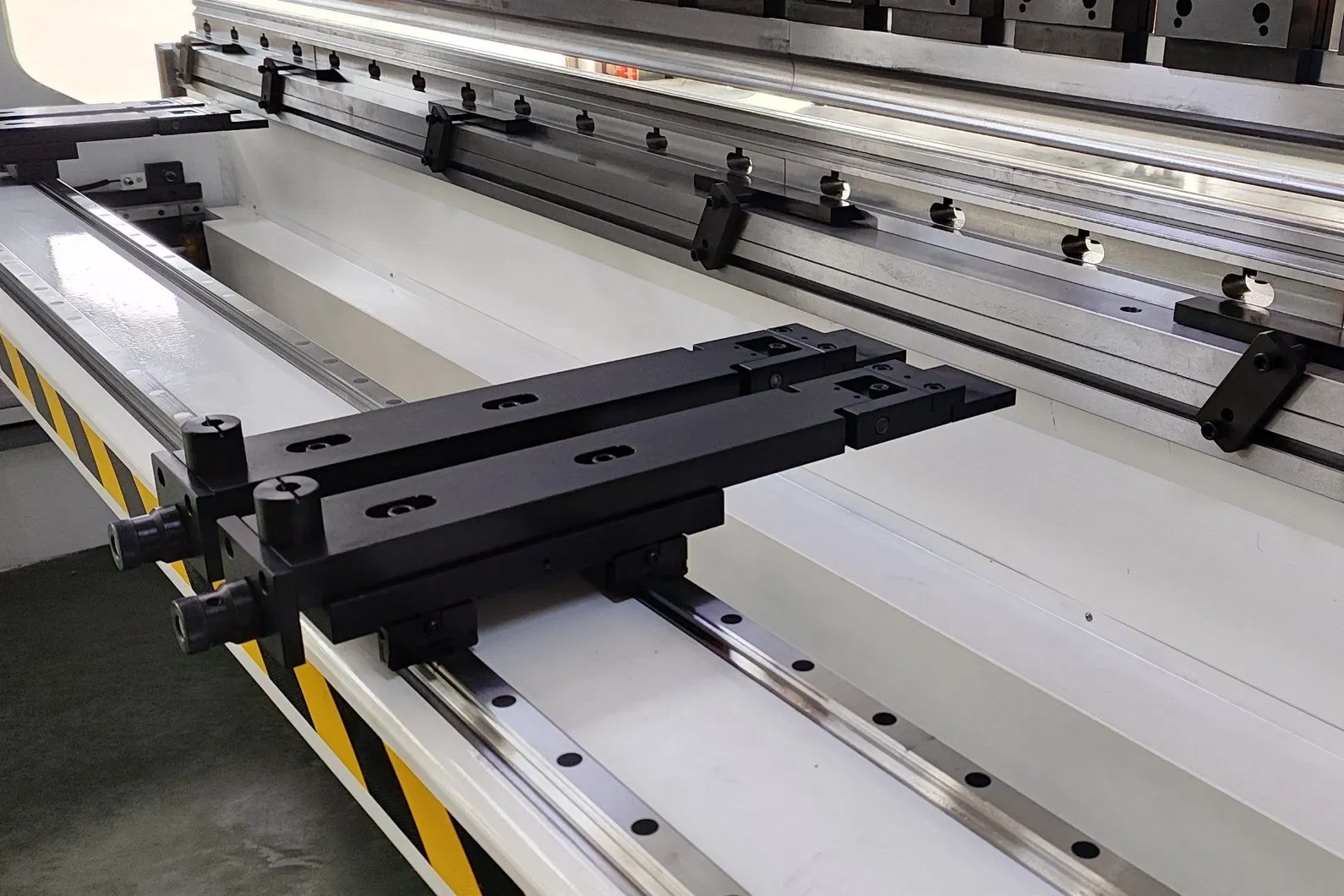

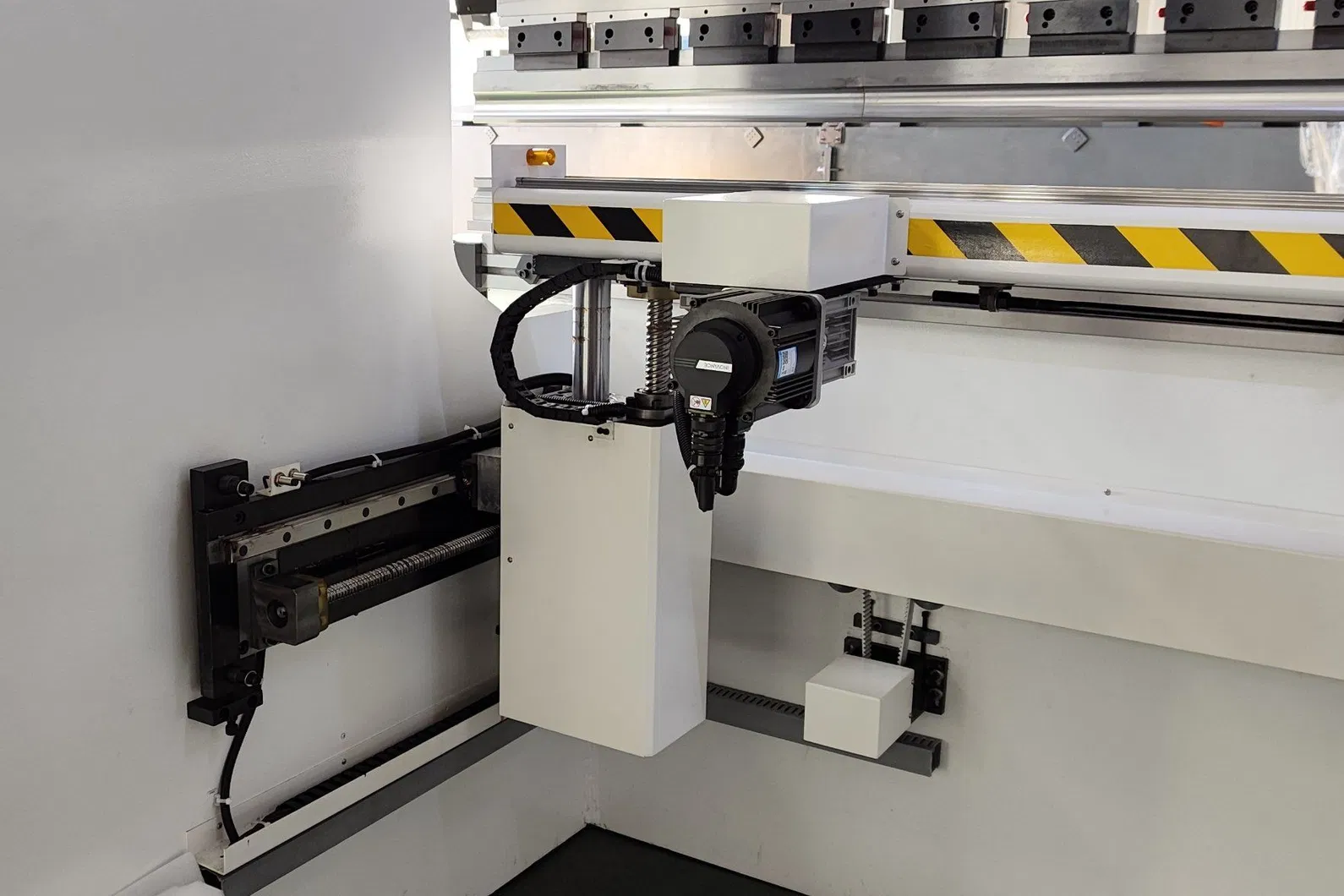

High-Precision Back Gauge System

The CNC-controlled rear gauge utilizes:

• Ball screw transmission technology
• Precision linear guide rails
• Multi-axis positioning capability

Axis configuration includes:

Standard Axes

• Y1 Axis
• Y2 Axis
• X Axis
• R Axis

Advanced Models

• V Axis (Automatic Crowning Compensation)

This configuration provides highly accurate positioning for demanding fabrication applications.

---

Automatic Crowning Compensation (V Axis)

The integrated crowning compensation system automatically corrects machine deflection during bending operations.

Benefits include:

• Improved angle consistency
• Enhanced bending accuracy on long workpieces
• Reduced operator adjustments
• Better finished product quality

This feature is particularly valuable when processing larger sheet metal components.

---

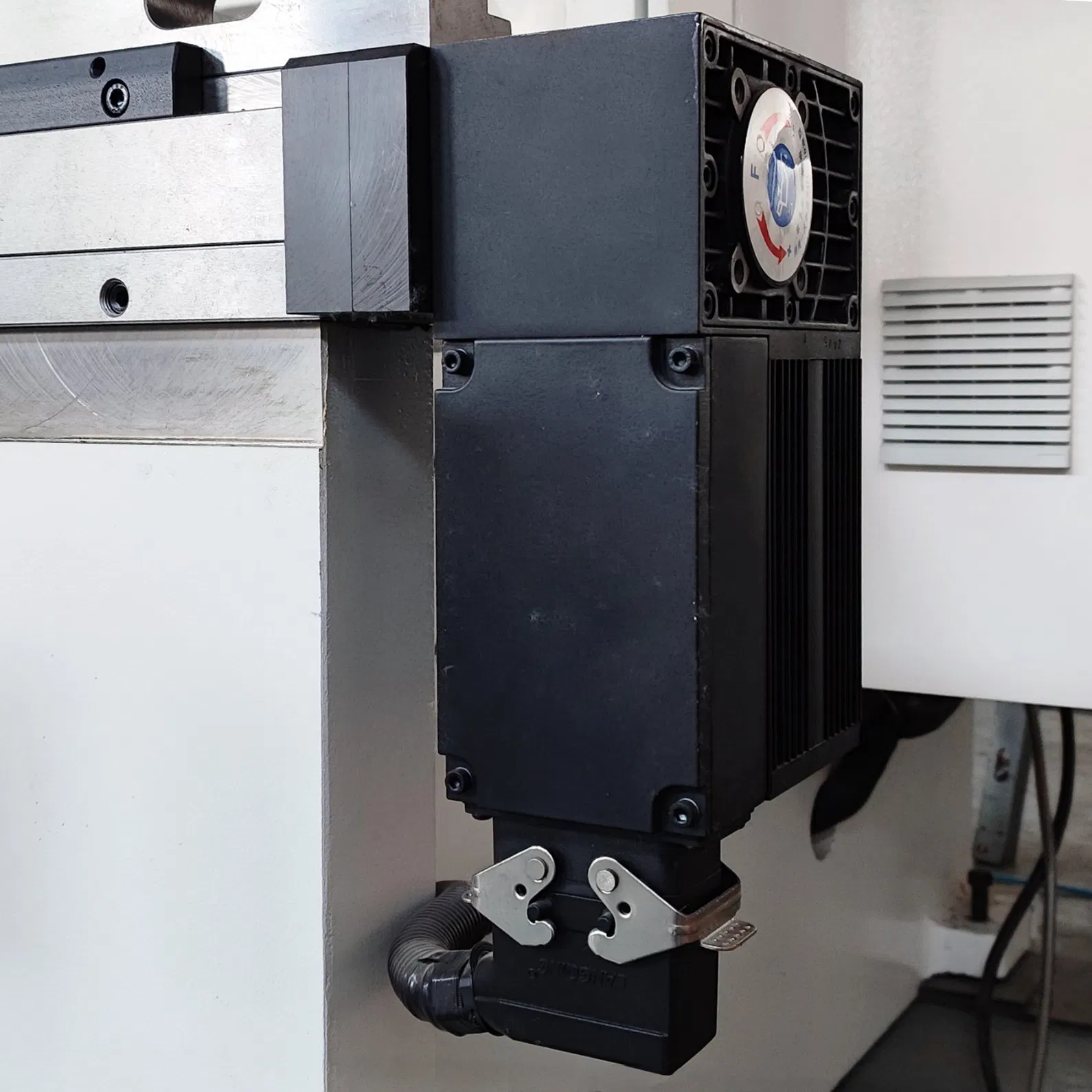

Servo Hydraulic Drive System

The high-efficiency servo motor and hydraulic system provide:

• Faster response times
• Lower energy consumption
• Improved motion control
• Reduced hydraulic losses

The result is increased productivity and lower operating costs compared to conventional hydraulic press brakes.

---

Integrated Welded Frame Construction

The machine frame is manufactured using:

• Heavy-duty integrated welding
• Stress-relief processing
• Precision machining

Advantages include:

• Enhanced structural rigidity
• Reduced vibration
• Improved machine stability
• Long-term dimensional accuracy

---

Double V Tooling System

The machine is supplied with:

• Upper punch tooling
• Double V bottom die system

Benefits include:

• Flexible bending applications
• Faster tooling changes
• Improved versatility
• Support for multiple material thicknesses

The modular tooling design enables efficient processing of diverse workpiece requirements.

---

Materials Processed

The CNC Press Brake is suitable for bending:

• Stainless Steel
• Carbon Steel
• Mild Steel
• Aluminum
• Copper
• Brass
• Alloy Metals

Its versatility makes it suitable for both light fabrication and heavy industrial production environments.

---

Available Model Configurations

Model	Working Width	Pressure Capacity
JC20-40	Up to 2000 mm	40 Ton
JC25-80	Up to 2500 mm	80 Ton
JC32-110	Up to 3200 mm	110 Ton
JC32-170	Up to 3200 mm	170 Ton
JC32-250	Up to 3200 mm	250 Ton
JC41-110	Up to 4100 mm	110 Ton
JC41-170	Up to 4100 mm	170 Ton
JC41-250	Up to 4100 mm	250 Ton
JC41-320	Up to 4100 mm	320 Ton
JC51-170	Up to 5100 mm	170 Ton
JC51-320	Up to 5100 mm	320 Ton
JC61-250	Up to 6100 mm	250 Ton
JC61-320	Up to 6100 mm	320 Ton
Custom Models	Up to 12000 mm	Available

---

Technical Specifications

Specification	Details
Machine Type	CNC Electro-Hydraulic Servo Press Brake
Brand	JATTRA
CNC System	Delem DA-53T
Drive System	Electro-Hydraulic Servo
Protection Rating	IPX-8
Positioning Accuracy	±0.02 mm
Bending Accuracy	±0.01°
Hydraulic System	High-Performance Hydraulic System
Motor Type	Servo Motor
Axes Control	Y1 + Y2 + X + R + V
Tooling	Double V Upper & Lower Dies
Rear Gauge	Four-Finger Rear Gauge
Material Rack	Included

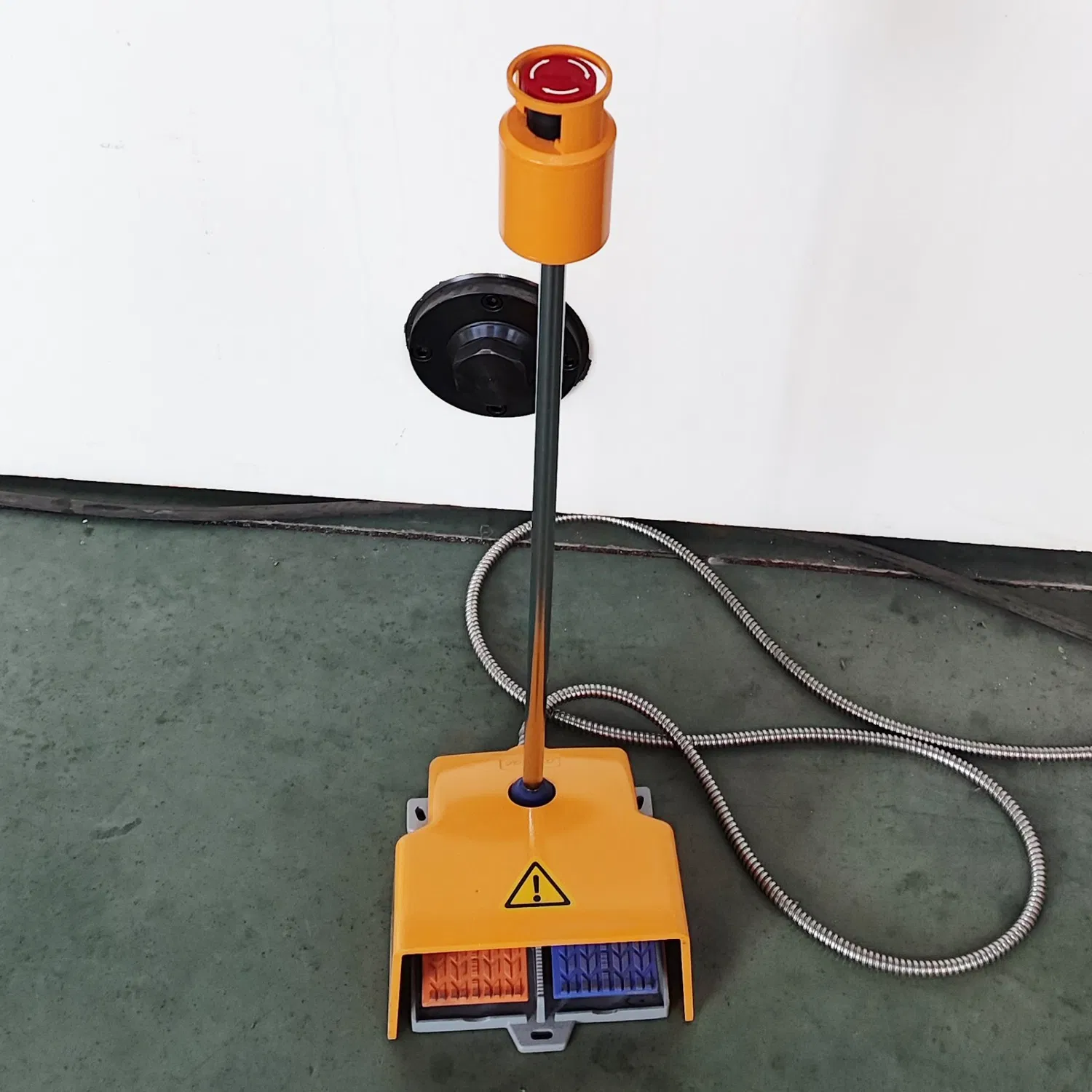

Foot Pedal	Included
Emergency Stop	Included
Laser Safety Protection	Optional
Certifications	CE, ISO 9001:2000, ISO 9001:2008
Warranty	2 Years

---

Standard Components

Included equipment:

• Delem DA-53T CNC Controller
• Servo Hydraulic Drive System
• Four-Finger Back Gauge
• Double V Tooling Set
• Crowning Compensation System
• Foot Pedal Controller
• Emergency Stop System
• Material Support Rack
• Quick Release Clamping System

---

Why Choose the JATTRA CNC Press Brake?

The JATTRA CNC Electro-Hydraulic Press Brake combines intelligent CNC technology, advanced servo-hydraulic control, and industrial-grade construction to deliver highly accurate sheet metal bending performance.

Its precision positioning systems, automatic compensation technology, and flexible machine configurations make it an ideal solution for manufacturers seeking improved productivity, reduced setup times, and consistent bending quality.

Whether producing electrical cabinets, structural components, industrial machinery parts, or architectural metalwork, this press brake delivers the accuracy and reliability required for demanding production environments.

---

Warranty & Technical Support

Every machine is backed by a 2-Year Manufacturer Warranty covering defects in materials and workmanship under normal operating conditions.

Support services include:

• Installation assistance
• Operator training
• Technical consultation
• Remote troubleshooting
• Spare parts support
• On-site and online service options

---

Request a Customized Quotation

Contact our technical sales team today to discuss tonnage requirements, machine configurations, tooling options, production applications, or to request a customized quotation tailored to your fabrication operation.
