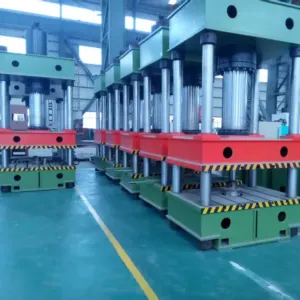

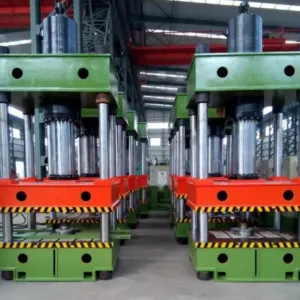

The YB32-200T Four-Column Hydraulic Press is a versatile industrial forming machine engineered for precision metalworking, forging, stamping, pressing, deep drawing, straightening, and assembly operations. Delivering a powerful 2,000 kN (200 Ton) nominal force, this hydraulic press combines robust construction, advanced hydraulic technology, and reliable operational performance to meet the requirements of modern manufacturing facilities.
Designed with a heavy-duty four-column structure, the YB32-200T provides excellent rigidity, balanced load distribution, and superior pressing accuracy. Its adaptable design makes it suitable for a wide variety of industries, including automotive manufacturing, aerospace components, metal fabrication, machinery production, electrical equipment manufacturing, and general industrial processing.
With stable operation, precise pressure control, and support for automated production environments, the YB32-200T offers manufacturers a dependable solution for demanding metal forming applications.
Hydraulic presses remain one of the most versatile machines in modern manufacturing due to their ability to generate consistent force across a wide range of applications.
The YB32-200T is ideal for:
Its flexibility allows manufacturers to perform multiple production processes using a single machine platform.
The YB32-200T features a reinforced four-column frame designed to provide maximum structural stability during high-pressure operations.
The four-column design ensures smooth slider movement and excellent alignment during pressing operations.
The machine body is fabricated from premium-quality steel plate and undergoes professional stress-relief treatment after welding.
Advantages include:
This construction helps maintain precision even during extended production cycles.
The hydraulic system is engineered for stable pressure delivery and smooth machine operation.
High-quality hydraulic components ensure efficient operation under demanding industrial conditions.
The hydraulic press incorporates a precision-guided slider system designed to maintain accurate movement throughout the pressing cycle.
The system helps manufacturers achieve accurate results across a wide range of production applications.
The machine supports mold adjustment precision up to:
Benefits include:
This level of precision is especially valuable for complex forming and calibration operations.
The YB32-200T is designed to integrate easily into modern production environments.
Suitable for:
Its efficient layout supports both standalone operation and automated manufacturing workflows.
Critical machine components undergo advanced surface treatment processes including:
These treatments improve:
The machine is equipped with multiple safety features to protect both operators and equipment.
These systems help maintain safe and efficient production conditions.
The YB32-200T is widely used across numerous industries.
Suitable for:
Ideal for:
Used for:
Supports production of:
Suitable for:
| Specification | Value |
|---|---|
| Model | YB32-200T |
| Machine Type | Four-Column Hydraulic Press |
| Forming Method | Free Forging |
| Nominal Pressure | 2000 kN |
| Slider Return Force | 470 kN |
| Maximum Hydraulic Pressure | 25 MPa |
| Slider Stroke | 700 mm |
| Rapid Downward Speed | 80–100 mm/s |
| Working Speed | 8–12 mm/s |
| Return Speed | 50–60 mm/s |
| Maximum Opening Height | 1120 mm |
| Worktable Size | 900 × 900 mm |
| Ejector Force | 400 kN |
| Ejector Stroke | 250 mm |
| Main Motor Power | 22 kW |
| Specification | Value |
|---|---|
| Brand | JBLDY |
| Power Source | Electric |
| Condition | New |
| Customization | Available |
| Machine Dimensions | 1350 × 900 × 3800 mm |
| Package Dimensions | 1450 × 1000 × 3900 mm |
| Gross Weight | 8000 kg |
| Origin | Shandong, China |
| After-Sales Support | Overseas Third-Party Service Available |
| Warranty | 1 Year |
| Model | Nominal Pressure |
|---|---|
| YB32-100T | 1000 kN |
| YB32-200T | 2000 kN |
| YB32-315T | 3150 kN |
| YB32-500T | 5000 kN |
This range allows manufacturers to select the ideal capacity for their production requirements.
The YB32-200T includes:
Optional configurations may be available depending on specific application requirements.
The YB32-200T combines robust construction, dependable hydraulic performance, and versatile application capabilities to provide manufacturers with an efficient and reliable metal forming solution.
Its four-column architecture, high pressing capacity, precision control systems, and automation compatibility make it an excellent choice for businesses seeking long-term productivity and operational reliability.
Whether used for forging, forming, stamping, calibration, or assembly operations, the YB32-200T delivers the strength, precision, and durability required for modern industrial production.
The YB32-200T is supported by a 12-Month Manufacturer Warranty covering defects in materials and workmanship under normal operating conditions.
Support services include:
Overseas third-party technical service support is available where applicable.
Contact our technical sales team today to discuss production requirements, tooling specifications, automation integration, or to request a customized quotation tailored to your manufacturing operation.
